K General Manager Filter

General Manager Filter
K
ARISTOTLE

 Benefits


    GMF is suitable to be installed on a main water line of the house.
    It can also be used for water dispenser application in public areas.
    It is the best afterwards micron screen filter. The GMF comes in

two types, one for filtration, the other one for absorption;
    the is optimized if both types are installed.
    The K series is a filtration type that can remove the particle
     that are larger than filtration accuracy, like harmful chemicals,
     rust, mud, sand, algae,pond scum, colloform, bacteria etc.

     The KA series is an absorption type. It can absorb organic,

harmful chemicals, chlorine, heavy metals, bacteria, smell etc..

 Advantage

    The unit has no vulnerable parts. No wastewater / No chemicals /
    No electricity needed.

 Patent
    No. ZL 2012 2 060914.9 Patent of
    State Intellectual Property Office of China

 Feature



    Resistant to high pressure
    Up to 6,000 per hour at 0.25 MPa (K30)
    Instantaneous flow of large water quantities
    Operating pressure display
    Laser marker

    Large filtration area
    Filtration area is more than 875 square cm, each 10” filter length
    High filtration flow
    Filtration flow up to 2,000 l per hour at 0.25 MPa (each 10” filter length)
    Instantaneous large flow of water needs
    High precision
    Average highest filtration precision is 1um
    Easy filter replacement
    Filter can be replaced without tools
    Standard connectors
    With the standard (DN, DIN, ASTM, JIS) pipe thread,flange, coupling
    Pressure indication
    With SS pressure gauge to indicate inlet pressure.
    Signal remote transfer for optional
    Stainless Steel filter housing
    High quality 304 heavy gauge stainless steel (food grade) 304L, 316,
    316L and 2205 are optional available.
 Model
                  ARISTOTLE K(A)【N1】iL11456.【N2】.【N3】
                    N1: Length of filter cartridge 15 / 20 / 30 40”
                    N2: Quantity of filter cartridges, if nothing is stated it means
                    1 filter cartridge
                    N3: Filtration accuracy, in um (micron)
              e.g.
                 ARISTOTLE K20iL11456.5
                 stands for GMF whole household filter with 1 piece of filter
                 cartridge with 20”, 5micron filtration accuracy
              Meaning
                 GMF with 1PCS of Filter Cartridge with 20inch,5micron
                 Total Flow Rate= 2000L/h*2*1=4000L/h=4m3/h
 Specification
  Model Joint L/Hr Type Filtration Area
    K15iL G3/4,G1 3000 Filtration 1300cm2
    K20iL G3/4,G1 4000 Filtration 1750cm2
    K30iL G3/4,G1 6000 Filtration 2600cm2
    K40iL G3/4,G1 8000 Filtration 3500cm2

    KA15iL G3/4,G1 3000 Filtration Ag-GAC
    KA20iL G3/4,G1 4000 Filtration Ag-GAC
    KA30iL G3/4,G1 6000 Filtration Ag-GAC
    KA40iL G3/4,G1 8000 Filtration Ag-GAC
    Filtration accuracy:1/5/10/15 micron for GMF K

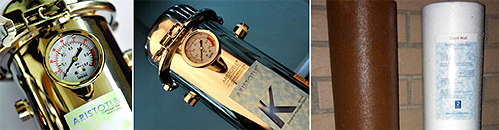

 Appearance
 Installation

 More



    For more detailed information, please contact us
